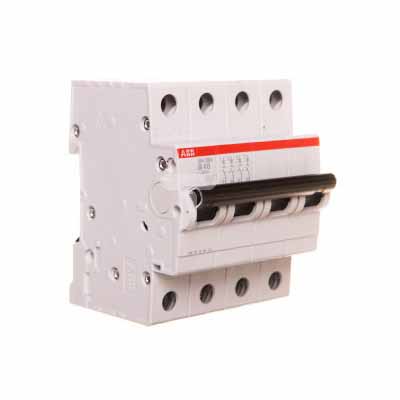

ABB SH204-B40, Miniature Circuit Breaker (MCB), Type B, 4 Pole, 40A Characteristics of the circuit breaker 40 A ABB SH204-B40 Equipment series: S 200, modular equipment for currents up to 63A Nominal mains voltage: 230/400 V ~ Line frequency: 50 Hz Nominal current: 40 A Breaking characteristic (setpoint): B Number of poles: 4 Number of occupied modules on a din-rail ( 17.5mm): 4 Breaking capacity: 6 kA Section of the conductor to be connected: Hard cable 25 mm² Flexible cable: 25 mm² Electrical wear resistance: 10,000 cycles Mechanical wear resistance: 20,000 cycles Operating temperature: - 25 С ... + 55 С Protection class IP20 Article: SH204-B40 Order code: 2CDS214001R0405 Manufacturer: ABB (ABB, Switzerland) Color: WHITE Weight(KG): 0.500
