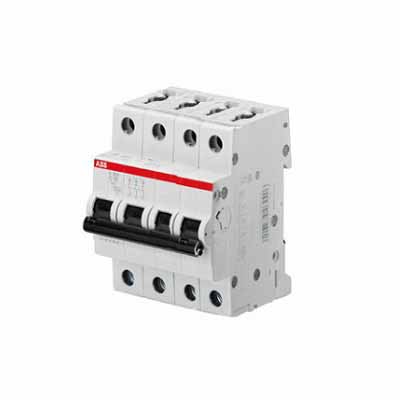

ABB SH204-B63, Miniature Circuit Breaker (MCB), Type B, 4 Pole, 63A Rated current 63 A Breaking capacity 6 kA Time-current characteristic type B Rated voltage 400V Number of poles 4 (4 phases) Frequency 50/60 Hz The number of cycles 20,000 Operating temperature from -25 to + 55 ° C Degree of protection IP20 Standard GOST R 50345-2010 (IEC / EN 60898-1) Series SH200 Weight 0.5 kg Number of modules four The size 85x69x70,5 mm additional characteristics single installation from the phase bus system is possible Manufacturer ABB (Germany) Color: WHITE Weight(KG): 0.500
Rated current 63 A Breaking capacity 6 kA Time-current characteristic type B Rated voltage 400V Number of poles 4 (4 phases) Frequency 50/60 Hz The number of cycles 20,000 Operating temperature from -25 to + 55 ° C Degree of protection IP20 Standard GOST R 50345-2010 (IEC / EN 60898-1) Series SH200 Weight 0.5 kg Number of modules four The size 85x69x70,5 mm additional characteristics single installation from the phase bus system is possible Manufacturer ABB (Germany)
