The laser - beam lines can be rotated horizontally at any angle of 360° by turning the head of the unit.
Mounting thread for connecting to tripod is provided
Color: GREEN LASER
Weight(KG): 1.200
Laser Type : Green Laser
635 nm < 1 mw (Laser Class 2)
Line - width : 2.5 mm / 7 m
Emitting angle of the laser - beam line
Vertical and Horizontal : ±1 mm / 7 mm
Right angle : 90° ± 0.25° (± 1 mm / 3 mm)
Diameter of plumb laser : 1.;5 mm
3 Modes

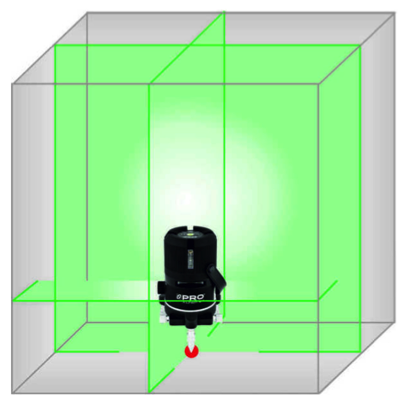

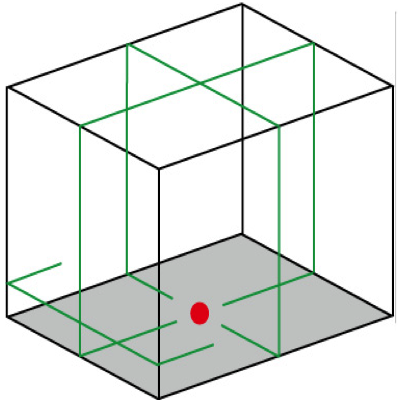

Vertical + Right angle ( Vertical ) + Plumb point (floor) + Horizontal
2 Modes
interior
Exterior
Leveling Range
±2.0° (Plumb leveling)
The laser - beam lines will be shut off automatically without the leveling range
Leveling Accuracy : ±1 mm / 5 mm
Power Supply
Comes with 2 X Rechargeable Battery
Operating Time
Horizontal : Approx . 20 hrs
Vertical : Approx . 9 hrs
Vertical + Horizontal : Approx , 7 hrs
Dimensions : Ø80 mm x (H) 190 mm
Weight : 1.2 kg
Tripod mounting thread : W 5/8 "
