LEAD TIME 4 TO 8 WEEKS UPON PAYMENT OR PURCHASE ORDER

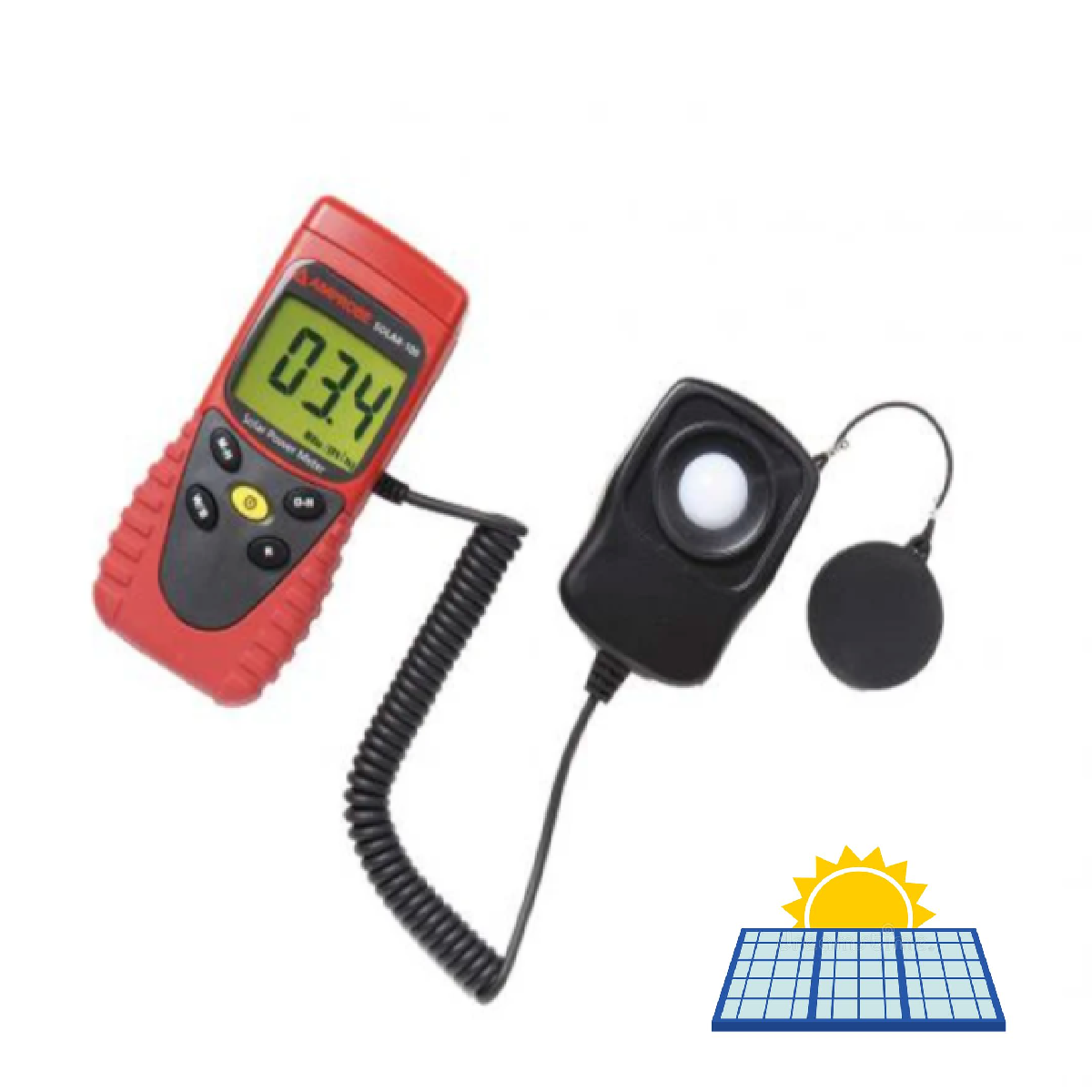

Solar Power Meter - Optimize the placement of solar systems and verify window efficiency.
The SOLAR-100 measures solar output that is used to calculate overall energy, efficiency and placement of solar system
Measuring solar radiation
Establishing light transparency of windows and panes (g-factor)
Display switchable between W/m2 or BTU / (ft2 x h)
Manual range selection
Integrated measurement memory (data hold)
MAX/MIN function
Manual zero adjustment
Color: Red
Weight(KG): 0.150
Attribute
Value
Maximum Light Level
634 Btu/ft² x h, 2000 W/m²
Best Accuracy
±10 W/m², ±3 Btu/ft² x h
Angular Accuracy
<5%
Test Type
Solar Power
Includes
9V Alkaline Battery
Battery Type
9V Alkaline
Dimensions
132 x 60 x 38mm
Weight
150g
Height
38mm
Width
60mm
Minimum Operating Temperature
+5°C
Length
132mm
Maximum Operating Temperature
+40°C
Model Number p
SOLAR-100
