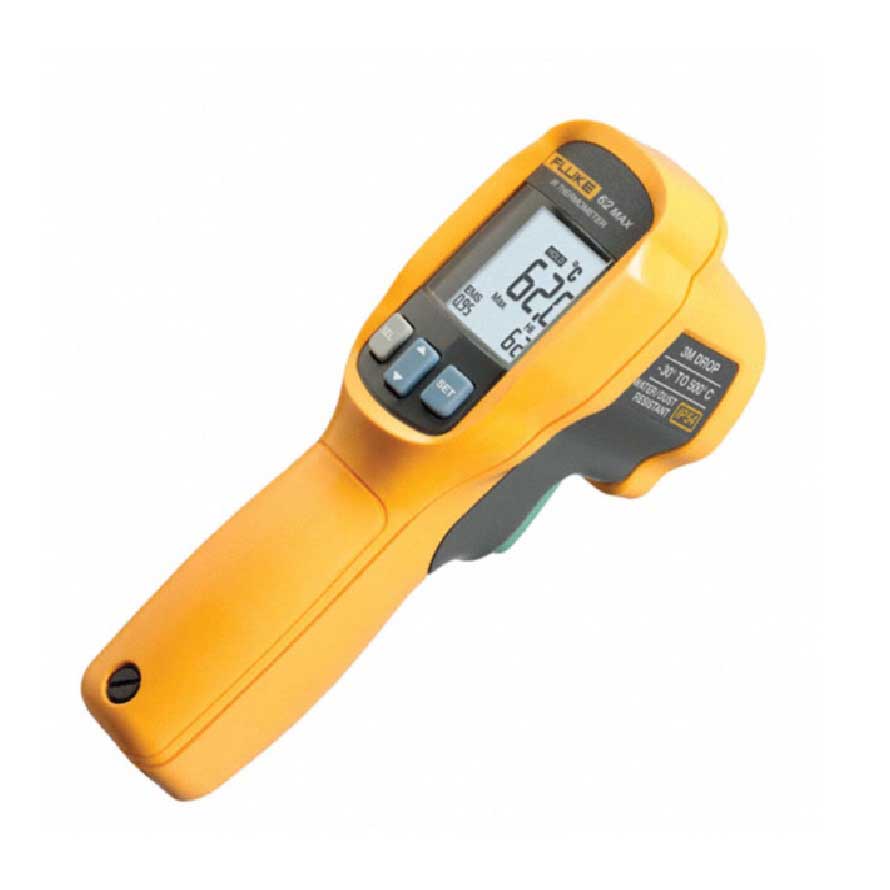

The Fluke 62 MAX infrared thermometers are everything you expect from the experts in measuring temperature in transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents in hard to reach areas for repair and maintenance.
Small in size, extremely accurate and yet easy to use .
IP54 rated for dust and water resistance.
Precise yet rugged enough to take a 3-meter drop.
Color: Yellow
Weight(KG): 0.500
Temperature Range
Fluke 62 Max
-30 °C to 500 °C (-22 °F to 932 °F)
Accuracy
Fluke 62 Max
±1.5 °C or ±1.5% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0
Response Time (95%)
Fluke 62 Max
Spectral Response
8 to 14 microns
Emissivity
0.10 to 1.00
Optical Resolution
Fluke 62 Max
10:1 (calculated at 90% energy)
Display Resolution
0.1 °C (0.2 °F)
Repeatability of Readings
Fluke 62 Max
±0.8% of reading or
Power
AA Battery
Battery Life
Fluke 62 Max
10 hours with laser and backlight on
Physical Specifications
Weight
255 g (8.99 oz)
Size
(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F), (without Battery)
Operating Humidity
10 % to 90 % RH Non-condensing at 30 °C (86 °F)
Operating Altitude
2000 Meters above mean sea level
Storage Altitude
12,000 Meters above mean sea level
IP Rating
IP 54 per IEC 60529
Drop Test
3 Meters
Vibration and Shock
IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC
EN 61326-1:2006 EN 61326-2:2006
Standards and Agency Approval
Compliance
EN/IEC 61010-1: 2001
Laser Safety
FDA and EN 60825-1 Class II
