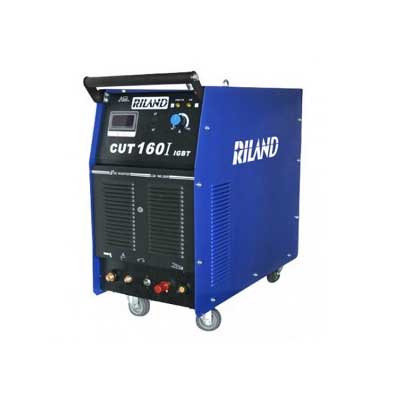

Adopt Advanced IGBT Module technology of the core inverter device. Untouch Start System– Smooth Arc-Striking with HF Control. Continuous adjustment of cutting current. Rapid Arc Restrike– Quality narrow cutting and excellent travel speed. Function Post Gas for effective cooling of the cutting torch. Competitive Cutting Thickness(Carbon Steel) - Recommended thickness: 40mm. Cool Operation, Long Consumable Life–Cutting accessories with competitive price and performance. Engine Drive Compatible– Wide range for input voltage,Select a suitable Engine Drive in remote locations. Auto-Protection against Low air pressure, over-voltage, over-current and over-heated. Energy Saving - Compared with the traditional cutting machine more efficient. Color: Blue Weight(KG): 60.000
Rated Input Voltage(V)：AC380V±15% 3P Efficiency(%)：85 Input Frequency (HZ)：50/60 Power Factor：0.93 Rated Input Power(KVA)：29 Protection Grade: IP21 Rated Input Current(A)：44 Arc-Initiating：H-F,Untouched Open Circuit Voltage(V)：320 Air Pressure(MPa)：0.4-0.5 Current Range(A)：20-160 Recommend Cutting Thickness（mm）：≤50 Rated Output Voltage（V）：144 Weight(kg)：60 Duty cycle at maximum current：60%@40℃ Dimension(mm)：670*320*640
