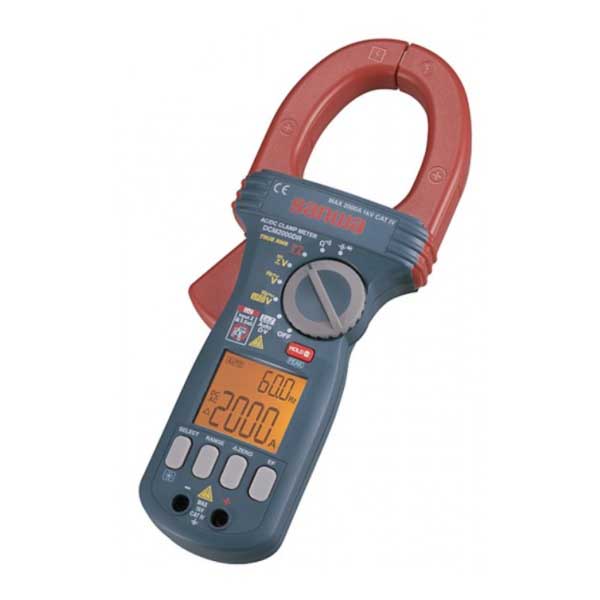

Sanwa Clamp Meter Dual Display DCM2000DR DC/AC True RMS

Description
Specification

Dual display shows voltage/current and its frequency True RMS EF (Electric Field) sensing VFD (Variable Frequency Drive) frequency measurement Low input impedance voltage measurement capable of attenuating the effects of ghost voltage Data hold, Range hold Relative value Peak hold (5msec.) Auto Power Save (30min.) (cancelable) Color: Grey Weight(KG): 0.400

DM200DR Measuring range Best accuracy Resolution ACA 200/2000A ± (2.0%+5) 0.1A DCA 200/2000A ± (2.0%+5) 0.1A ACV 6/60/600/1000V ± (1.2%+5) 0.001V DCV 6/60/600/1000V ± (0.5%+5) 0.001V Resistance 600/6k/60k/6M/40M Ω ± (0.5%+5) 0.1Ω Frequency 10~1999Hz ± (0.1%+4) 0.1Hz Caoacutance 60n/600n/6 u/60 u/600u/2000 uF ± (2.0%+5) 0.01nF Continuity Buzzer sounds at between 10Ω and 200Ω Open Voltage: a[[rpx. 0.5V Diode test Open Voltage: approx. 1.8V
