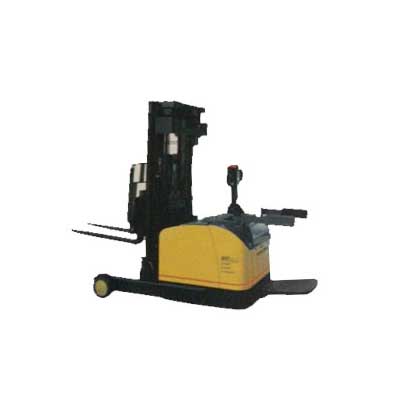

Lead Time 3-4 Weeks Type of Mast : Triplex Capacity : 1300 kgs Load Center : 500 mm Operator Type : Walkie (Rider Option) Elactric Power Steering : Standard Equipped Optional Lifting Height : 4300/ 4500/ 5000 mm Lowered Height of Fork : 25 mm Overall Fork Width : Adjustable Maximum 660 mm Standard Fork LEngth : 1070 mm Fork Thickness : 40 mm Fork Width : 100 mm Reach Distance : 430 mm Fork Tilting Degree : 3/ 5 mm Minimum Turning Radius : 1600 (2000) mm Minimum Aisle Width for Pallet 800x200 : 2695 (3140) mm Minimum Aisle Width for Pallet 1000x1200 : 2745 (3185) mm Minimum Ground Clearance : 62 mm Maximum Travelling Speed Laden/ Unladen : 5/ 5km/h Maximum Lifting Speed Laden/ Unladen : 0.13/ 0.1m/s Maximum Lowering Speed Laden/ Unladen : 0.25/ 0.13 Gradeability Laden/ Unladen : 5/7% Service Weight without Battery : 1955 kgs Service Weight with Battery : 2200 kgs Wheel Type Front/ Rear : PU Wheels : 1 drive wheel, 2 loading wheels Dimension of Driving Wheel : dia. 248 mm x 75 mm Wheel Base : 1330 mm Break Type : Electromagnetic/ Regenerate Travelling Motor : 1.5AC kw Lifting Motor : 3.0DC kw Voltage : 24 V Battery Capacity : 280Ah/ Industry Control System : CURTIS 1230 Weight(KG): 3.000
