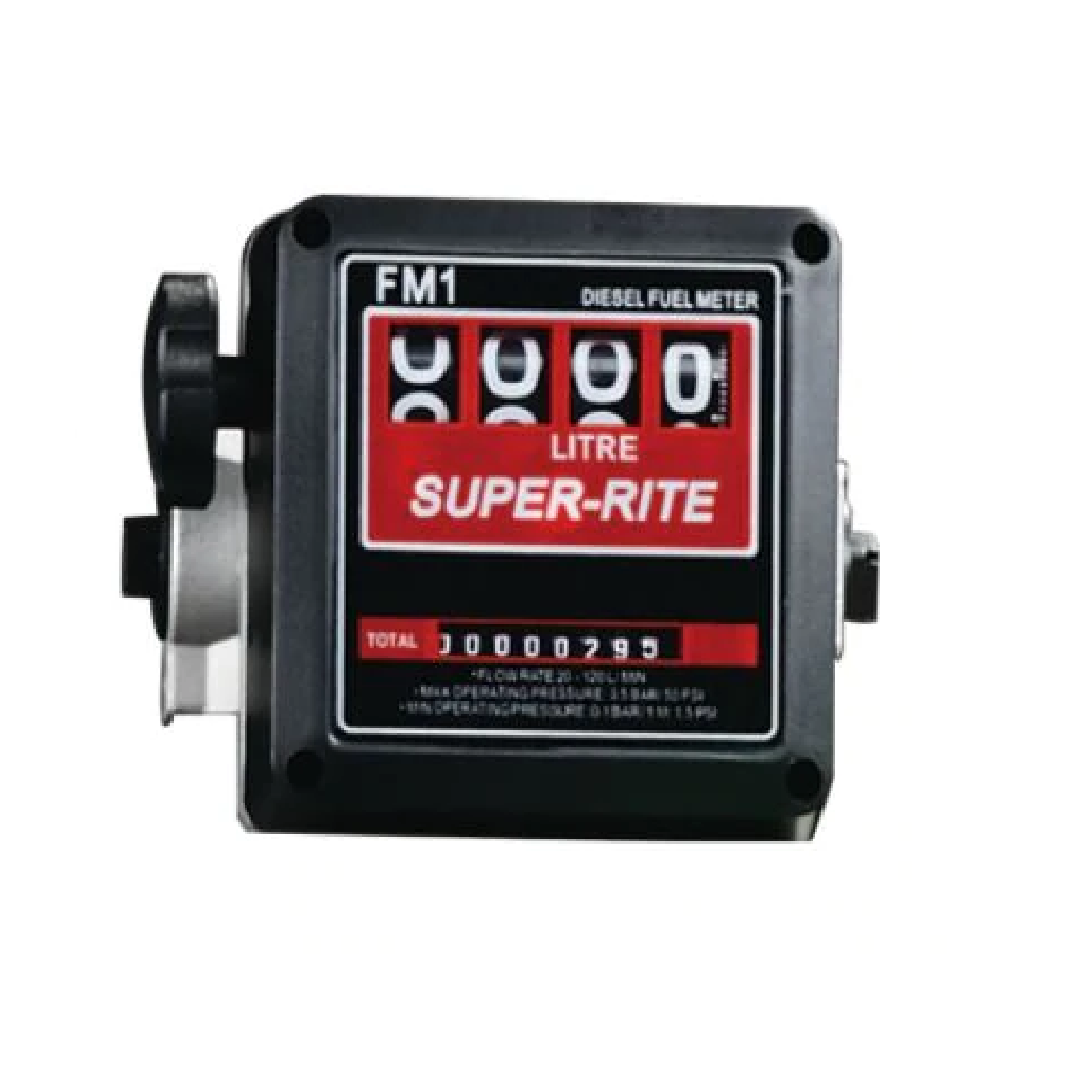

SUPER-RITE Diesel Flow Meter 1"/25MM Digital Reading AM-1011-1

Description
Specification

Nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non - commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulse model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity. Color: Red Weight(KG): 5.000

Model : AM-1011-1 Resolution : 0.1 L Flow - rate Range 20÷120 l/min 5,3÷32 gal/min Repeatability : 0.2 % Max Operating Pressure : 10 Bar (142 Psi) Bursting Pressure : 30 Bar (426 Psi) Pulse card type: “Open collector”, frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 MA
