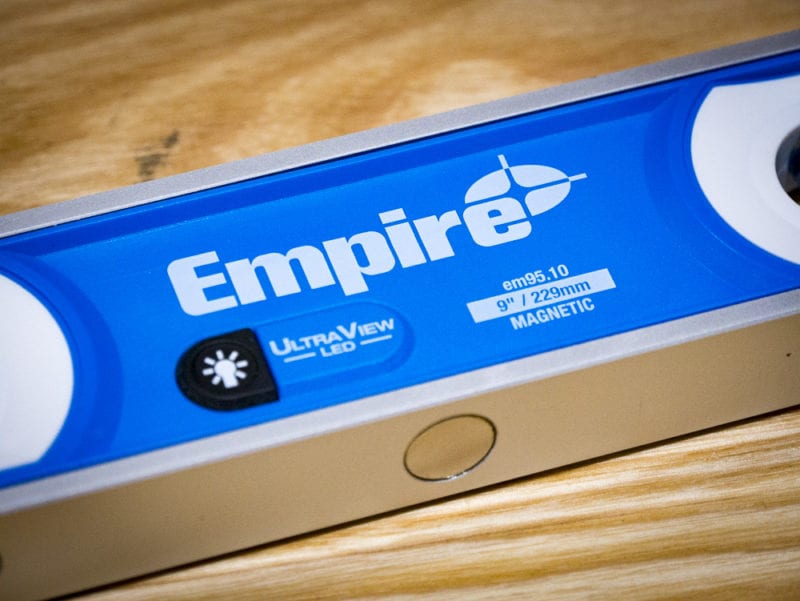

Empire didn’t just slap an LED onto an existing torpedo and call it a day. The EM95.10 is a direct descendant of the company’s highly regarded e95 series box levels, which introduced the UltraView system and earned a reputation for outstanding visibility in broad daylight and total darkness alike. The torpedo variant condenses all that optical wizardry into a compact, 10‑inch frame that slips into a tool pouch, rides on a belt, or tucks behind a truck seat without complaint. It carries the same professional‑grade accuracy of 0.0005 inches per inch, the same True Blue vials with high‑contrast e‑Band lines, the same UV‑activated optical brightener that makes the bubble pop in sunlight, and the same rare‑earth magnets that hold the tool to steel studs and conduit as if it owes them money. At a street price hovering around $20, it’s one of the most accessible ways to put a genuinely premium, illuminated level into your everyday carry. Let’s unscrew the battery compartment, click the LED button, and see if this torpedo really does light up the job.
The UltraView LED System : Why a Lit‑Up Bubble Changes Everything, Even at High Noon
The defining feature of the EM95.10 is the pair of LEDs that flank the two vials—one for the level (horizontal) vial and one for the plumb (vertical) vial. These aren’t afterthought bulbs that cast a faint, uneven glow. Empire engineered the LED placement to concentrate light directly onto the bubble, creating a bright, even illumination that makes the bubble edges snap into focus. The effect is most dramatic in low‑light environments : think inside a dark electrical panel, behind a furnace, in an unlit crawlspace, or under a sink at dusk. Without LEDs, you’d be angling a flashlight, trying not to cast a shadow over the vial, and hoping you’re reading the bubble correctly. With the EM95.10, you press a button, the vial lights up like a tiny theater stage, and the bubble is instantly, unmistakably legible.
What’s less intuitive—but equally important—is that the UltraView system works just as well in bright daylight. The vials contain a UV‑activated optical brightener that responds to sunlight, intensifying the contrast between the bubble and the surrounding liquid. Combined with Empire’s high‑contrast e‑Band lines—dark, crisp reference marks that frame the bubble—the vial remains readable even when the sun is hammering down on a concrete slab. You don’t need the LEDs outdoors during the day, but the optical brightener ensures you’re never struggling to find the bubble’s edge. The result is a level that handles the full brightness spectrum from midnight attic to noon rooftop without missing a beat.
Empire designed the LED activation with battery conservation in mind. The button cycles through three states : level vial lit, plumb vial lit, and off. You can’t illuminate both vials simultaneously, which is a minor concession but a smart one for preserving the coin‑cell batteries that power the system. An automatic shut‑off kicks in after about two minutes of inactivity, which prevents the level from draining its batteries because you forgot to turn it off after setting it down on the miter saw stand. The battery compartment is sealed well enough to maintain the tool’s IP54 rating, so dust and splashing water won’t short out the electronics. For a torpedo level that’s going to get dropped, rained on, and covered in drywall dust, that’s a meaningful durability assurance.
True Blue Vial Accuracy : 0.0005 Inches Per Inch—The Gold Standard for Pro Levels
A level can light up like a disco ball, but if the bubble lies, it’s worthless. The Empire EM95.10 inherits the True Blue vial platform that has made the e95 series a benchmark for accuracy. The stated tolerance is 0.0005 inches per inch—identical to Empire’s top‑tier box levels. Over the 10‑inch length of this torpedo, that translates to a maximum possible error of 0.005 inches, or about the thickness of a dollar bill. In practical terms, you’re not going to detect a deviation that small with a pencil line on a 2×4. For conduit runs, electrical panels, pipe alignment, cabinet hardware, and all the other tight‑space tasks that torpedo levels handle daily, this accuracy exceeds what the job demands by a comfortable margin.
The vials are set in the classic arrangement : a horizontal vial for level and a vertical vial for plumb. There is no 45‑degree vial, nor is there a rotating adjustable vial like you’d find on some premium torpedoes. For Pros who rely on a 45‑degree reference—plumbers setting waste lines, for example, or electricians bending offsets at specific angles—this omission is the one genuine gripe against the EM95.10. Empire made a deliberate choice here : keep the feature set focused, keep the price down, and deliver bulletproof accuracy on the two most commonly used orientations. If your work demands a 45‑degree vial or a rotating bubble, you’ll need to look at models like the Klein torpedo or the Milwaukee 48‑22‑5210. But if you can get through your day with level and plumb alone, the EM95.10’s accuracy is unimpeachable.
Aluminum Frame, IP54 Rating, and Rare‑Earth Magnets : A Torpedo That Can Take a Beating
Pick up the EM95.10 and the first thing you’ll notice is the heft. It’s solid. The frame is all‑aluminum, machined flat on the reference surfaces, with a matte anodized finish that resists corrosion and hides minor scratches. At 10 inches long, 1.85 inches tall, and 0.75 inches wide, it fills the hand without feeling bulky. The weight is substantial enough to stay put when you set it down, but not so heavy that it drags your tool pouch out of shape. The aluminum body also protects the vials and electronics far better than the ABS plastic used on budget torpedoes; a drop onto concrete is more likely to scuff the anodizing than crack a vial housing.
Empire rates the EM95.10 at IP54, which in plain English means it’s protected against dust ingress that could interfere with operation (the “5”) and against splashing water from any direction (the “4”). It won’t survive immersion, but a rain shower, a splash of pipe dope, or a bucket of water knocked over on the bench won’t kill it. The battery compartment is gasketed, and the button cover is a soft rubber membrane that keeps moisture out. For plumbers, electricians, and HVAC techs who work around water, condensation, and occasional spray, this rating provides peace of mind that a $20 electronic tool isn’t going to short out the first time it sees moisture.
On the backside of the frame, Empire embedded three rare‑earth magnets—one in the center and one near each end. These aren’t the weak ceramic magnets that let go if you breathe on them. They’re genuine rare‑earth alloys that snap onto steel studs, electrical panels, metal door frames, and wrought iron pipe with so much force that you’ll sometimes have to slide the level sideways to break the bond. You can stick this torpedo to a vertical steel I‑beam, let go, and it will hang there, leaving both hands free for marking, drilling, or fastening. For electricians running conduit on steel ceilings or metal stud framers plumbing walls, this magnetic grip is a genuine productivity multiplier. The magnets sit slightly proud of the frame, so they make first contact with the metal surface, and the aluminum body doesn’t interfere with the magnetic flux.
Top Ruler and Pipe Groove : The Torpedo That Doubles as a Mini Straightedge
A torpedo level’s top edge often goes to waste—just a blank plastic or metal ridge. Empire replaced that dead space with a ruler groove that runs the length of the top surface. This groove accepts the edge of a framing square, a drywall T‑square, or any straightedge, effectively extending the level’s working surface for scribing long lines. You can lock the torpedo onto a straightedge, align it, and draw a level reference across an entire panel or a long pipe run without switching to a 4‑foot box level. It’s a simple integration that costs nothing to include but adds genuine utility when you’re laying out conduit rack positions or marking a level cut line on a sheet of plywood.
On the bottom of the torpedo, Empire cut a V‑groove that runs the full length. This groove is precisely machined to center the level on round conduit and pipe, stabilizing it on 1/2‑inch, 3/4‑inch, and larger EMT or copper. Without a groove, a flat‑bottomed level rocks on a curved pipe, making it nearly impossible to get an accurate read. With the groove, you just set the torpedo on the conduit, the pipe nests into the V, and the level stays put. Combined with the powerful magnets, you can slap the torpedo onto a horizontal run of steel conduit, let go, adjust the hanger, and tighten the clamp without ever holding the level. For electricians pulling miles of EMT or plumbers running gas lines, this feature alone justifies the $20.
Top‑Read Window : Checking Plumb Without Craning Your Neck
The plumb vial on the EM95.10 is equipped with a top‑read window—a cutout in the frame above the vial that reflects the bubble view upward. When you’re plumbing a piece of conduit against a wall, you can glance down from the top rather than tilting your head sideways and pressing your face against the surface. This is especially useful in tight quarters, like between a water heater and a wall, or when plumbing a panel in a corner. The mirror angle is fixed and non‑adjustable, but it’s set correctly for a natural line of sight when the level is held vertically in front of you. It’s a small ergonomic touch that you don’t appreciate until you use a torpedo without one and find yourself contorting into unnatural positions to read the bubble.
Surface Grip : Non‑Slip Stability on Flat Walls
The back face of the torpedo features textured rubber surface‑grip pads that prevent the level from sliding down a painted wall or a finished panel. When you’re plumbing a switch box on drywall, or leveling a junction box on a smooth metal surface, the grip pads bite just enough to hold the level still while you mark your screw holes. They’re not a substitute for the magnets—they won’t hold on ferrous metal with the same tenacity—but on non‑magnetic surfaces, they provide a degree of stability that a bare aluminum frame lacks. The rubber is chemically resistant, so contact with PVC cement, pipe dope, or silicone caulk won’t degrade it.
Specifications at a Glance
| Specification | Detail |
|---|---|
| Model Number | Empire Level EM95.10 |
| Length | 10 inches (254 mm) |
| Height | 1.85 inches (47 mm) |
| Width | 0.75 inches (19 mm) |
| Material | Aluminum frame |
| Number of Vials | 2 (level, plumb) |
| Vial Type | True Blue, UV‑activated optical brightener, high‑contrast e‑Band lines |
| LED Illumination | Dual LEDs (one per vial), selectable, 2‑minute auto shut‑off |
| Accuracy | 0.0005 inches per inch (0.5 mm per meter) |
| Magnets | 3 rare‑earth magnets (center & ends) |
| Top Feature | Ruler groove for straightedge compatibility |
| Bottom Feature | V‑groove for pipe and conduit |
| Plumb Read | Top‑read window |
| Surface Grip | Rubber pads on rear face |
| IP Rating | IP54 (dust‑protected, splash‑proof) |
| Battery | Coin‑cell (replaceable) |
| Warranty | Limited lifetime on frame and vials; 1‑year on electronics |
| Price | Approx. $20 (street price) |
A Few Things the EM95.10 Doesn’t Do—and Why That Might Be Fine
No tool is perfect, and the EM95.10 makes a few tradeoffs that are worth acknowledging so you can decide if they matter to you.
No 45‑Degree Vial: This is the headline omission. For plumbers setting waste‑line pitch (typically 1/4‑inch per foot, about 1.2 degrees) or electricians bending offsets, a 45‑degree reference is useful. However, the EM95.10’s accuracy and magnetic stability make it easy to combine with a digital angle finder or a separate pitch‑measuring tool. If you only occasionally need 45 degrees, the tradeoff is acceptable. If you use 45 degrees daily, a torpedo with a rotating vial may suit you better.
Battery Replacement: The LED system relies on coin‑cell batteries, not rechargeable lithium. The runtime is decent—Empire doesn’t publish an hour rating, but typical use sees the batteries lasting several months. However, when they die, you need to have spares. A pack of coin cells costs a few dollars and lives in the glove compartment. It’s a minor annoyance, not a dealbreaker.
Single‑Vial LED at a Time: The button only lights one vial at a time. If you’re checking both level and plumb in rapid succession, you’ll double‑tap the button to switch. It’s a conscious design to save power, and most users adapt quickly. But it’s a behavioral hiccup on day one.
Price and Value : Twenty Dollars for a Lit‑Up, Magnet‑Packed, USA‑Backed Torpedo
At a retail price of roughly $20, the EM95.10 sits at the upper end of the budget torpedo market but well below the premium tier occupied by Stabila, Sola, and some Milwaukee models. For that $20, you get a level with accuracy that matches $100 box beams, LED illumination that no other torpedo at this price offers, three rare‑earth magnets that grip like a vise, an IP54 dust and water protection rating, a pipe groove, and a top ruler that extends the tool’s scribing capabilities. The build quality—solid aluminum, not plastic—puts it in a different durability category than the $8 torpedoes stocked on home‑center end caps.
Considering that a replacement 4‑foot box level costs $60‑$100, and the EM95.10 shares its accuracy pedigree, this torpedo is an extraordinary value. It’s not just a torpedo; it’s a miniaturized version of Empire’s professional e95 line, with all the core DNA intact. For a pro who needs a reliable, illuminated tight‑space level, it’s hard to imagine a better return on a $20 bill.
Who Should Buy the Empire EM95.10 LED Torpedo Level?
- Electricians: The pipe groove, rare‑earth magnets, and LED illumination make this the near‑perfect torpedo for running conduit, aligning panels, and working in dark electrical rooms. The top‑read plumb window is ideal for switch boxes and panel alignment.
- Plumbers: The V‑groove centers on copper and steel pipe; the magnets hold on metal brackets and hangers. The IP54 rating provides confidence around water.
- HVAC Technicians: The magnets cling to ductwork; the LED lets you level a unit in a dark mechanical closet.
- General Contractors and DIYers: If you want one torpedo that covers the majority of alignment tasks with premium accuracy and illuminated convenience, this is a top contender.
If your work demands a 45‑degree vial or you need a rotating bubble for complex angle transfers, look toward the Klein or Milwaukee torpedo with adjustable vials. But for everyone else, the EM95.10 is a standout.
Final Verdict : A Tiny Titan of Visibility, Accuracy, and Grip
The Empire Level EM95.10 LED Torpedo Level is one of those rare tools that makes you wonder why every torpedo doesn't have an LED. The illumination is not a gimmick; it’s a genuine problem‑solver that eliminates a daily frustration for anyone who works in less‑than‑ideal lighting—which is to say, nearly every tradesperson on the planet. Pair that with Empire’s proven True Blue vial accuracy, a rugged aluminum frame, powerful rare‑earth magnets, a pipe groove, and a top ruler, and you have a 10‑inch tool that punches far above its weight class.
The absence of a 45‑degree vial is a conscious omission, not a flaw, and the EM95.10 compensates with a focused feature set that executes its two core orientations flawlessly. At around $20, it’s an impulse‑buy accessory that will outlast and outperform most torpedo levels costing twice as much. If your tool bag has been missing a reliable, illuminated torpedo that can take a drop, shrug off a splash, and grip a steel stud like it’s bolted there, the EM95.10 is ready to report for duty. Click the button, watch the bubble light up, and enjoy the rare pleasure of a level that actually makes your job easier—one bright, perfectly centered bubble at a time.
