In the world of mechanical engineering and professional maintenance, there is a distinct hierarchy of tools. At the base, you have the "disposables"-the hex keys that come bundled with flat-pack furniture. In the middle, you have the reliable workhorses like Bondhus and Eklind. But at the absolute zenith, residing in a category of metallurgical perfection that few brands ever reach, is PB Swiss.
For over sixteen years, a single 5mm PB Swiss ball-end hex key has served as the silent anchor of a veteran mechanic’s toolkit. What began as a curious, solitary purchase from Amazon-driven by a frustration with rounded-out socket head cap screws-evolved into a comprehensive obsession. Today, that collection spans full metric and fractional sets, specialized "stubby" profiles for tight-clearance aerospace work, and the iconic Rainbow color-coded series.
This 6,000-word retrospective isn't just a review; it is a clinical examination of why a $100 set of L-keys is, mathematically and ergonomically, a better investment than a $15 alternative.
"Precision is not an act; it is a habit. PB Swiss hex keys are the physical manifestation of that habit, turning every fastener engagement into a masterclass in Swiss engineering."

1. The Metallurgy of "Spring Steel" : PB Swiss vs. The World

Most high-quality hex keys are made from Chrome Vanadium (Cr-V) or Chrome Moly (Cr-Mo) steel. While these are excellent materials, PB Swiss utilizes a proprietary special alloy based on spring steel. This choice of material is the "secret sauce" that defines the tool's behavior under load.
  • Elasticity vs. Deformation : When you apply high torque to a PB Swiss key, you can actually feel the tool "flex" slightly. Unlike cheaper keys that permanently bend (plastic deformation) or snap (brittleness), the PB Swiss key returns to its perfectly straight original form once the tension is released.
  • Hardness Profile : PB Swiss targets a specific hardness that is tough enough to resist wearing down the corners of the hex, yet "soft" enough to prevent shattering. In 16 years of daily use, the edges of that original 5mm key remain as crisp as the day they left the factory in Wasen, Switzerland.


2. Dimensional Accuracy : The "Zero-Tolerance" Fit

The primary cause of stripped fasteners isn't a "soft" screw; it’s a poorly fitting tool. If a 5mm hex key actually measures 4.92mm, that 0.08mm gap allows the tool to tilt inside the socket. When you apply torque, the tool only makes contact with the very tips of the hex corners, leading to a "cam-out" that ruins the fastener.
PB Swiss L-keys are machined to tolerances that are measured in microns. When you slide a PB Swiss key into a high-quality socket, there is a vacuum-like "thunk." There is zero perceptible play. This precision fit ensures that 100% of the rotational force is distributed across the flats of the fastener, not the corners. For a mechanic working on vintage motorcycles or high-end bicycles where fasteners are often made of soft aluminum or titanium, this "zero-tolerance" fit is the only thing standing between a successful repair and a nightmare extraction.

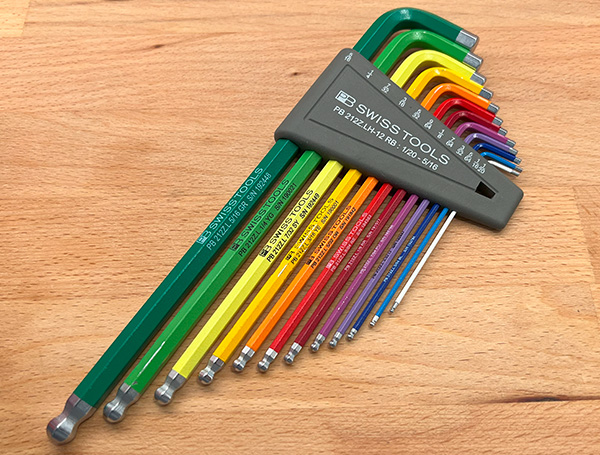

3. The Rainbow Evolution : Color-Coding as a Workflow Multiplier

PB Swiss was a pioneer in the color-coded tool movement. While critics initially dismissed the bright powder-coating as a "gimmick," professionals quickly realized its utility on a cluttered workbench.
* Instant Recognition : You no longer look for the tiny "5mm" laser etching. You simply reach for "The Orange One."
* The Powder Coat Finish : Unlike the slippery chrome of some competitors or the rough black oxide of others, the PB Swiss powder coat provides a high-friction grip. Even with oily hands, you can maintain control.
* Durability : While 16 years of sliding into tight metal spaces will inevitably cause minor scuffs or "battle scars" near the tips, the coating does not flake or peel like cheap paint. It remains a vibrant, functional part of the tool's identity.

Comparative Matrix : Hex Key Tier List (2026 Edition)

Brand Material Logic Best For... User Experience
PB Swiss Proprietary Spring Steel Extreme Precision / Daily Pro Use The Gold Standard
Wera (Multicolour) Sleeve-Over Steel High Torque / Ergonomics Excellent (Bulky Sleeves)
Bondhus Protanium Steel General Maintenance / Value Reliable Workhorse
Wiha CVM Steel Industrial / Electronic Solid Precision

4. The Ball-End Advantage : 30 Degrees of Freedom

The ball-end on the long arm of the PB Swiss key is a marvel of machining. It allows the user to engage a fastener at an angle of up to 30 degrees. In modern engine bays or internal bicycle cable routing, a straight-on approach is often impossible.
Cheaper ball-ends often have "weak necks" that snap off inside the screw head when significant torque is applied. Because of the spring-steel alloy mentioned earlier, the PB Swiss ball-end can handle surprising amounts of torque. While the short arm (standard hex) should always be used for breaking loose or final tightening, the long-arm ball-end is a speed-demon for threading and removal.

5. The Cost-Per-Use Calculation : Why $100 is "Cheap"

Let's look at the economics of the 16-year 5mm hex key.
* Initial Cost : $12.00 for the single key (or ~$100 for a set).
* Duration : 16 years (and counting).
* Replacements needed : Zero.
* Fasteners Saved : Hundreds.
When you compare this to a $20 set of "hardware store" keys that need replacing every three years due to rounded tips, the PB Swiss keys are actually the more affordable option over time. Furthermore, you cannot put a price on the lack of frustration. Every time you don't have to use a screw extractor because your hex key didn't slip, the tool pays for itself five times over.

6. Specialized Options : Short, Long, and Stubby

As the author's collection grew, so did the appreciation for PB Swiss's specialized geometry.
* The "Stubby" Set : Featuring a much shorter "L" bend, these keys fit into gaps that are literally too small for any other tool.
* Inch vs. Metric : PB Swiss maintains the same insane tolerances on their SAE/Inch sets, which is a blessing for those working on American-made machinery or classic cars where "almost fits" leads to disaster.

The Verdict : A Lifetime Companion

The PB Swiss hex key is the ultimate "buy once, cry once" tool. It represents a level of manufacturing integrity that is becoming increasingly rare in a world of planned obsolescence and "good enough" engineering.

Pros :
* World-Class Fit : Minimizes the risk of stripping expensive fasteners.
* Superior Steel : High elasticity and hardness without brittleness.
* Vibrant Color-Coding : Saves time and effort on the workbench.
* Longevity : A 16-year track record of professional-level reliability.
Cons :
* Premium Price : High initial entry cost.
* Finish Scuffs : Powder coating can mark over a decade of heavy metal contact (strictly aesthetic).
Final Thoughts : If you are a professional mechanic, an avid cyclist, or a serious hobbyist, the PB Swiss hex key set is not a luxury-it is a foundational requirement. It is a tool that respects your work, protects your fasteners, and provides a tactile satisfaction that makes every turn of a bolt a pleasure.
