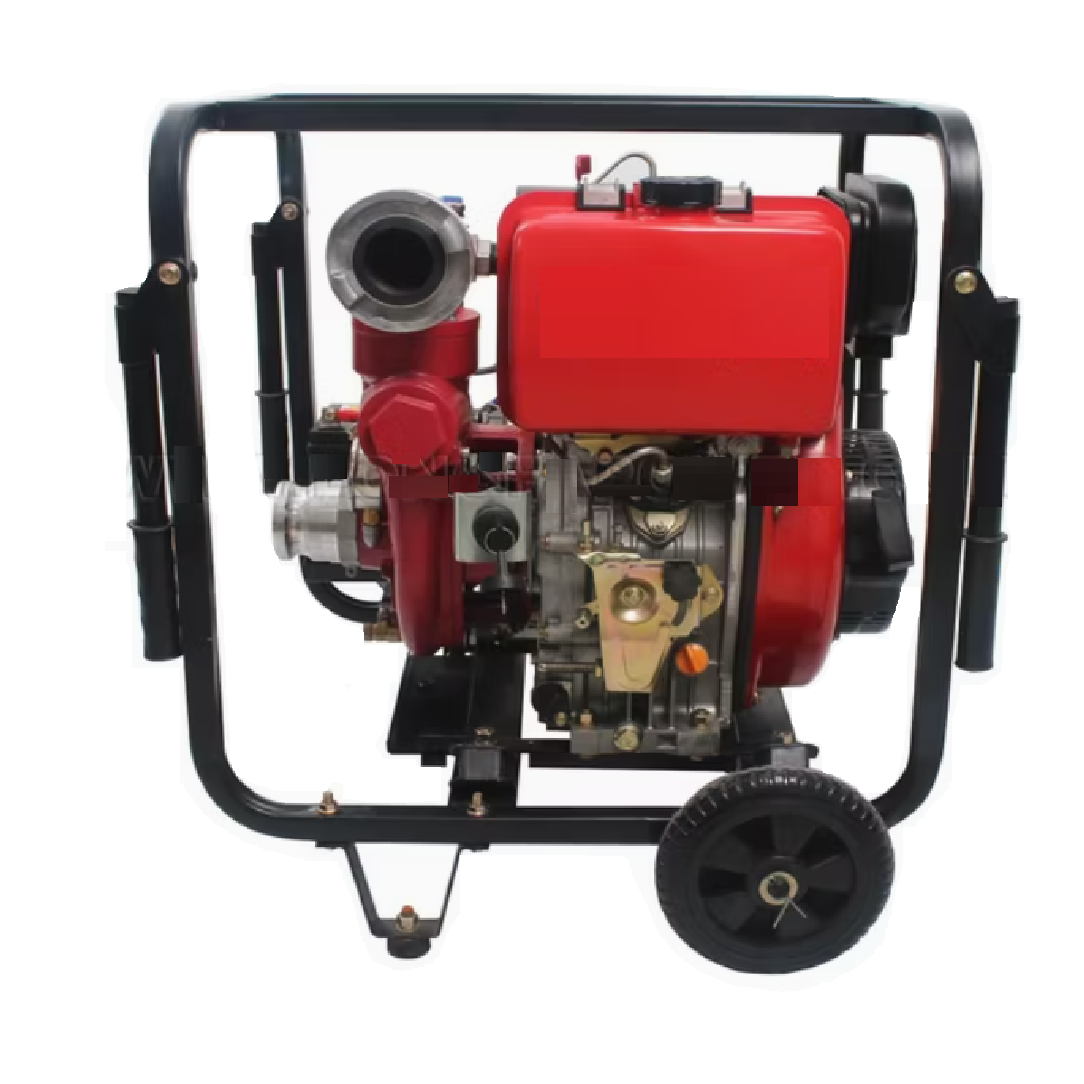

KATO KP-203 High Pressure Self Priming Water Fire Pump Driven By YANMAR Air-Cooled Diesel Engine Mounted With Full Tubular Frame

Description
Specification

KATO’ High Pressure Self Priming Water Fire Pump Driven By ‘YANMAR’ Aircooled Diesel Engine Mounted with Full Tubular Frame Color: RED Weight(KG): 36.000

Pump Model : KP-203 Pump Capacity : Max 400 litres/min. (or 24 m3/hr.) Pump Total Head : Max 75m (or 7.5 bar) Suction Bore : 2” dia. Discharge Bore : 1 no. x 1½” dia. and 2 nos. x 1” dia. (total 3 outlets) Engine Model : YANMAR (Japan) Model L48N6 Engine Power : Max. 4.7Hp at 3,600rpm Type of Engine : 1-cylinder, 4-stroke air-cooled diesel engine Starting System : Rope recoil starting type Unit Dimension : 510 x 410 x 480 mm Unit Dry Weight : Approx. 35 kg
