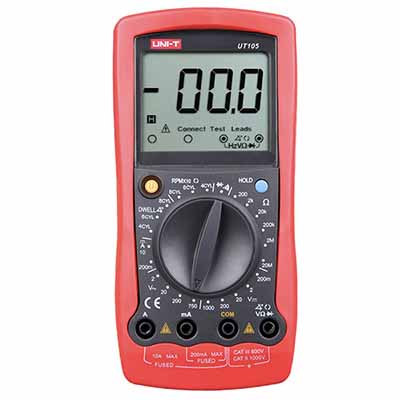

UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions.
The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles.
Its applications include working on fuse, switch, solenoid, relay,charging system, fuel system, engine sensing etc.
Applications
Its applications include working on fuse, switch, solenoid, relay, charging system, fuel system, engine sensing etc.
Features
Diode/Data hold
Continuity buzzer
Low battery indication
Input protection
Color: Red
Weight(KG): 1.000
Specifications
Range
UT105
DC voltage (V)
200mV/2V/20V/200V/1000V
±(0.5%+5)
AC voltage (V)
2V/20V/200V/750V
±(0.8%+5)
DC current (A)
200mA/10A
±(0.8%+5)
Resistance (Ω)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(0.8%+5)
Features
Display count
　
2000
Manual range
　
√
Input impedance for DCV
Around 10MΩ
√
Dwell/Tach
4CYL/6CYL/8CYL
±(3%+5)
General Characteristics
Power
9V battery (6F22)
Display
60mm x 54mm
Product color
Red and grey
Product net weight
351g (including holster)
Product size
179mm x 88mm x 39mm
Standard accessories
Battery, test leads, holster
Standard individual packing
Gift box, English manual
Standard quantity per carton
20pcs
Standard carton measurement
450mm x 330mm x 340mm
Standard carton gross weight
5.9kg
